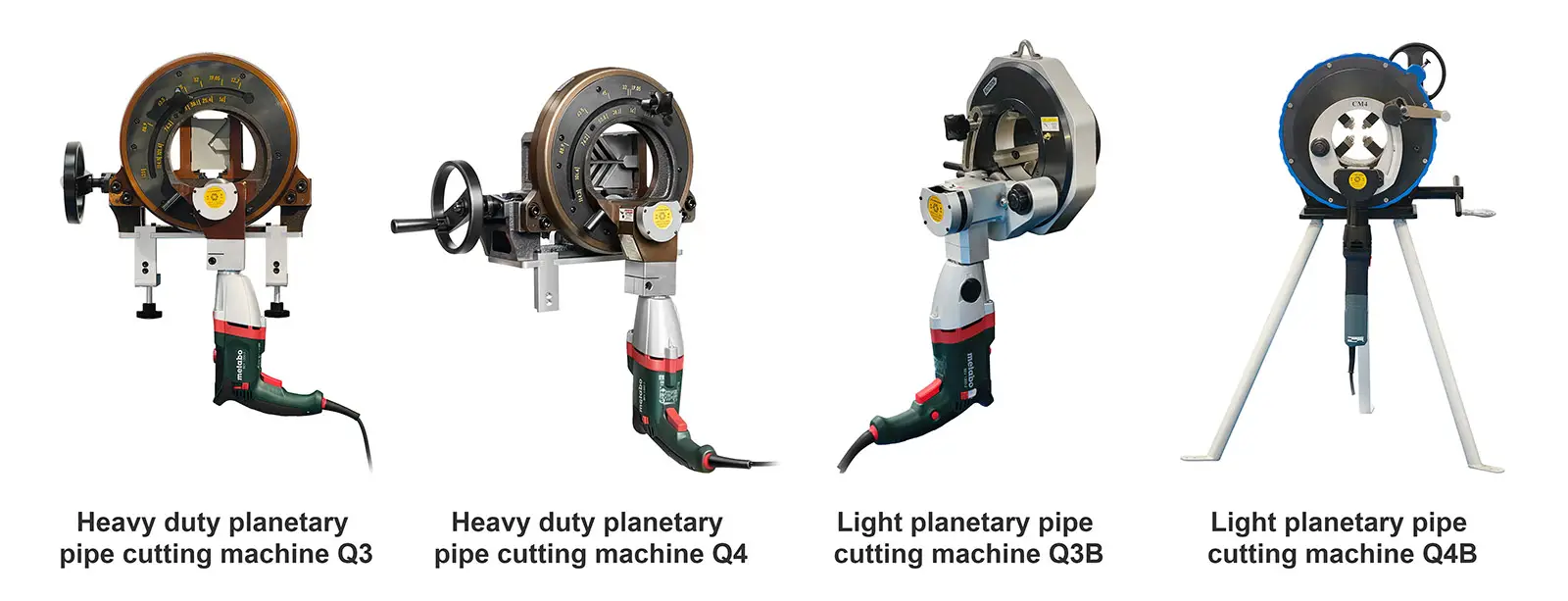

KEPUNI Planetary Pipe Cutting Machine

Introduction

KEPUNI provides professional planetary pipe cutting machine to assist pipe welding operations.

  • The cutting and beveling are completed by rotating the tool under the static condition of the pipeline;
  • Pipe diameter adjustment is fast and it can be completed within a few seconds;
  • The pipe is automatically centered during cutting and the groove is uniform;
  • The cold working process will not damage the pipe material, fast cutting and high efficiency;
  • The incision is not deformed, the end face is free of burrs and keep clean and it is very suitable for occasions requiring high-quality welding;

Inquiry messageDownloadWatch Video
Open All | Close All

Essential Details

KEPUNI’s planetary pipe cutting machine is engineered to streamline pipe welding operations by delivering precise, cold-cutting solutions that preserve material integrity. Unlike conventional methods, this system rotates the cutting tool around a stationary pipeline, ensuring uniform beveling and groove quality without compromising structural strength.

Key Features:

1.Rapid Diameter Adjustment
Equipped with a quick-change mechanism, the machine adapts to pipe diameters ranging from 15 mm to 600 mm (adjustable within seconds), eliminating the need for manual tooling swaps.

2.Auto-Centering for Consistent Accuracy
A self-centering chuck automatically aligns the pipe during cutting, guaranteeing a ±0.1 mm concentricity tolerance and uniform groove geometry across the entire circumference.

3.Cold-Cutting Technology for Material Protection
The friction-based cutting process generates minimal heat, preventing work hardening, deformation, or material degradation. This cold-working method ensures the pipe’s mechanical properties remain intact for high-pressure or critical applications.

4.Burr-Free, High-Quality Finishes
Produces clean, square cuts with zero edge deformation and burr-free end faces, meeting stringent ASME B31.3 and ISO 15614-1 standards for welding preparation.

5.Efficiency and Versatility
 processes materials including carbon steel, stainless steel, duplex alloys, and copper-nickel, making it ideal for oil/gas pipelines, power plants, and shipbuilding.

Applications:

Pressure Vessel Fabrication: Prepares welded joints for ASME Section VIII certification.

Offshore Platforms: Ensures corrosion-resistant welds in harsh marine environments.

Nuclear Power Plants: Complies with RCC-MR codes for reactor piping systems.

Essential Details

ModelUnitQ3Q4
Cutting rangemm6-76.212.7-114.3
Inch0.25-3.00.5-4.5
Max cutting wall thicknessminimum(mm)11
maximum(mm)57
Powerw13001300
Voltage
220V,50Hz220V,50Hz
Rotating speedRPM30-160(As diameter increases, the speed decreases)30-160(As diameter increases, the speed decreases)
Equipment sizemm600*420*540640*465*540
Net weightkg38.5kg50kg
Gross weightkg55kg65kg
Application
Plastic pipe(PE, PP, PVDE, PVC)Copper pipe Cast iron pipe Ordinary structural steel pipeGalvanized pipe Aluminum pipe304 stainless steel pipe316L stainless steel pipe Titanium alloy pipe (requires special blade)Plastic pipe(PE, PP, PVDE, PVC)Copper pipe Cast iron pipe Ordinary structural steel pipe Galvanized pipe Aluminum pipe304 stainless steel pipe316L stainless steel pipe Titanium alloy pipe (requires special blade)
