Split type orbital welding guns is suitable for semiconductor industry, clean energy industy, water treatment industry, life science industry, food and beverage industry, it use of split type design, according to the thickness of the welding pipe and different site conditions,miniature welding head, small in size, extremely space - saving, and can be flexibly held with one hand.
Weld heads have optical speed control wihthout the need for a tachometer or calibration
Reater flexibility to perform welds farther away from the power supply is provided using available welding heads extension cables
Engineered for industries requiring ultra-precision welding in sterile or confined environments—including semiconductors, clean energy, water treatment, life sciences, and food & beverage—the KEPUNI split-type orbital welding head system combines modular design with rapid deployment capabilities.
Key Specifications:
Pipe Diameter Range: 3.175 mm – 15.88 mm
Joint Type: Butt welding
Wall Thickness: 0.5 mm – 1.5 mm
Delivery Time: 10 days (customized to pipe diameter specifications)

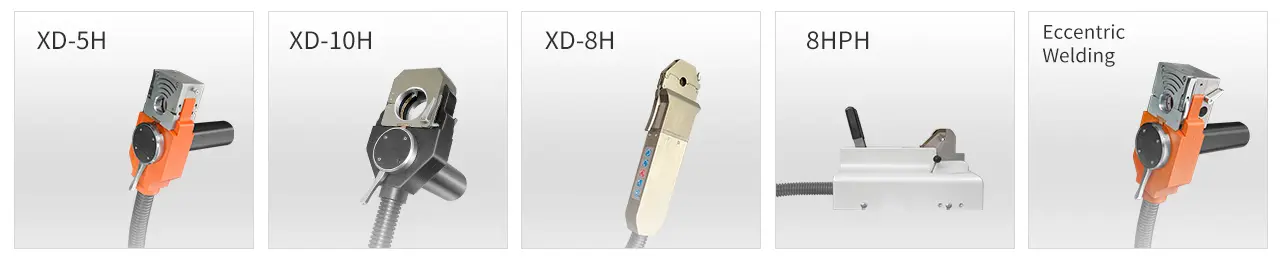

Modular Design Solutions:

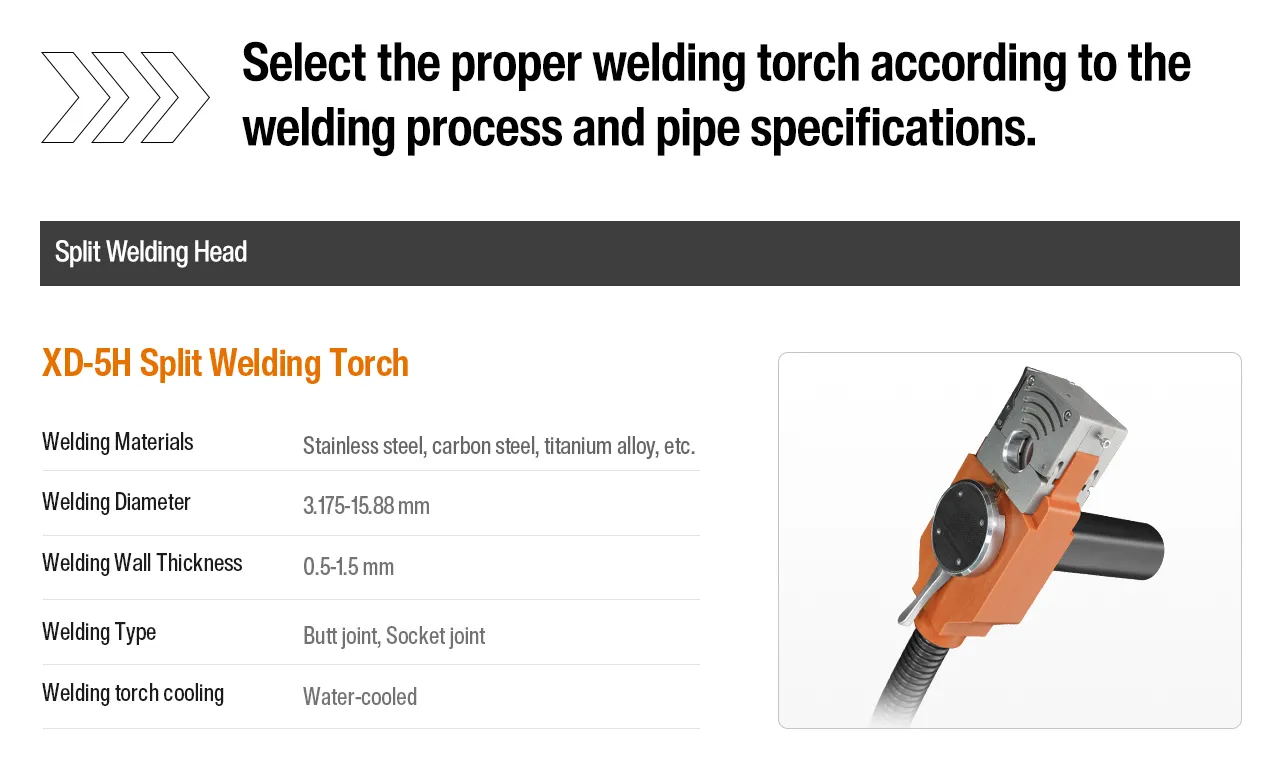

5H Micro-Welding Head
The
split orbital welding head is a welding gun specially developed and
designed for narrow spaces. It is suitable for welding of precision
small straight pipes. The welding is double-sided and smooth inside and
outside.

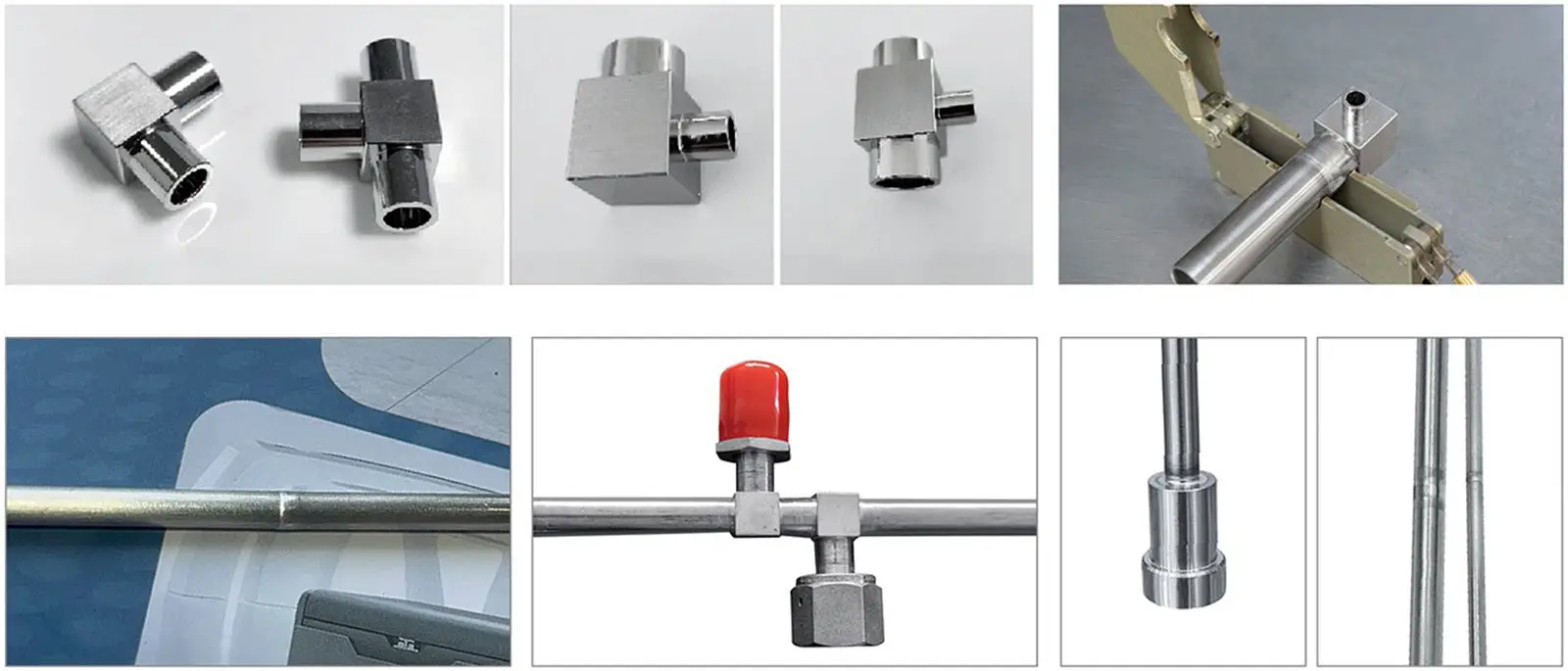

5H Eccentric-Welding Head
Designed
for T-shaped pipe intersections and complex geometries, ensuring full
penetration without obstructing adjacent components.
Advanced Features:
Optical Speed Control: Eliminates the need for tachometers or manual calibration, maintaining consistent welding parameters via real-time feedback.
Extended Reach Cables: Enables welding up to 15 meters from the power supply, ideal for large-scale or hazardous environments.
Plug-and-Play Adaptability: Two configuration schemes (standard/eccentric) allow seamless integration with pipe thicknesses and site constraints.

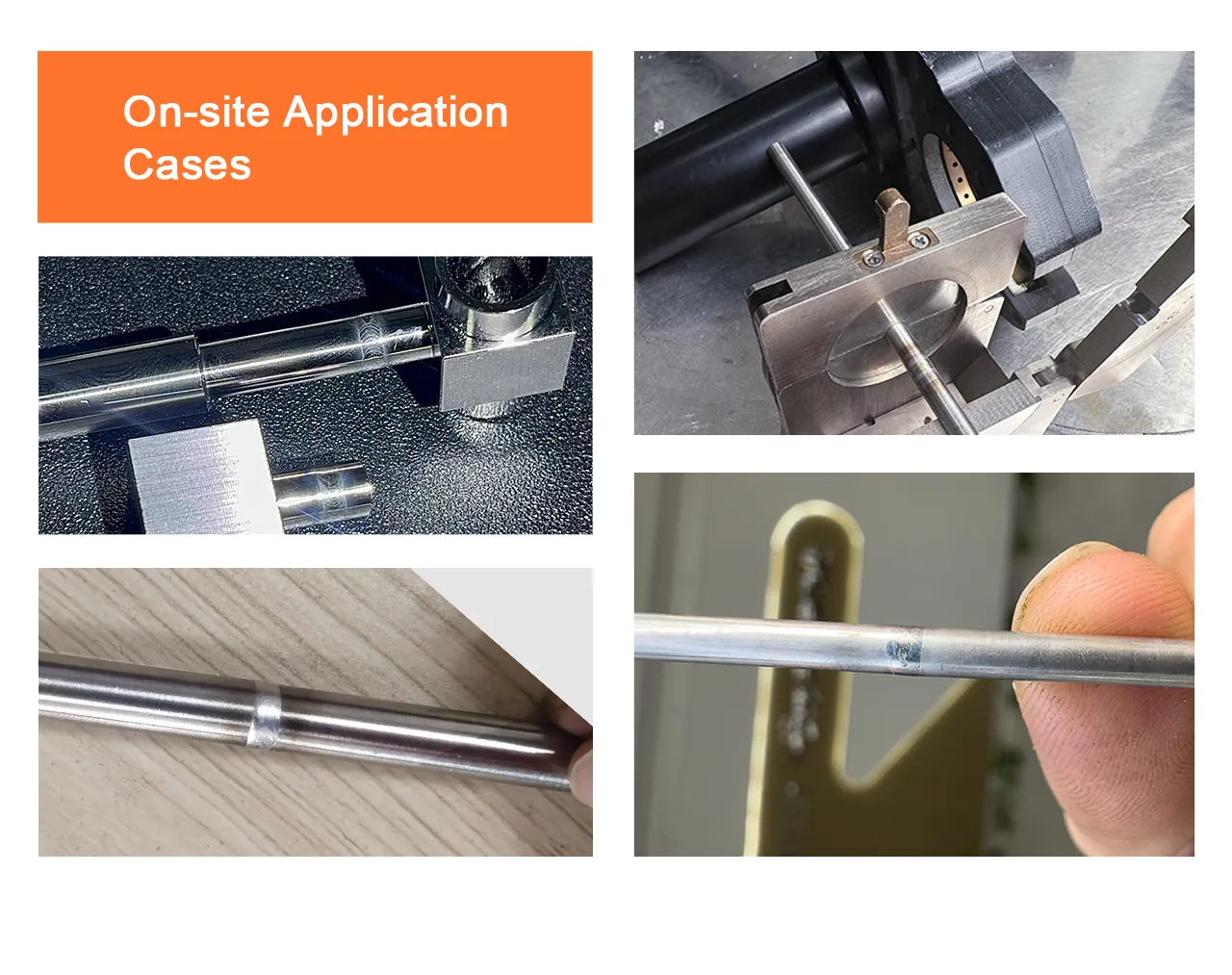

Applications:
Semiconductor: Welds process piping for high-purity gas delivery systems.
Pharmaceutical: Joins stainless steel tubing in bioreactors and sterilization units.
Food & Beverage: Repairs CIP/SIP-compliant piping in dairy and brewing facilities.

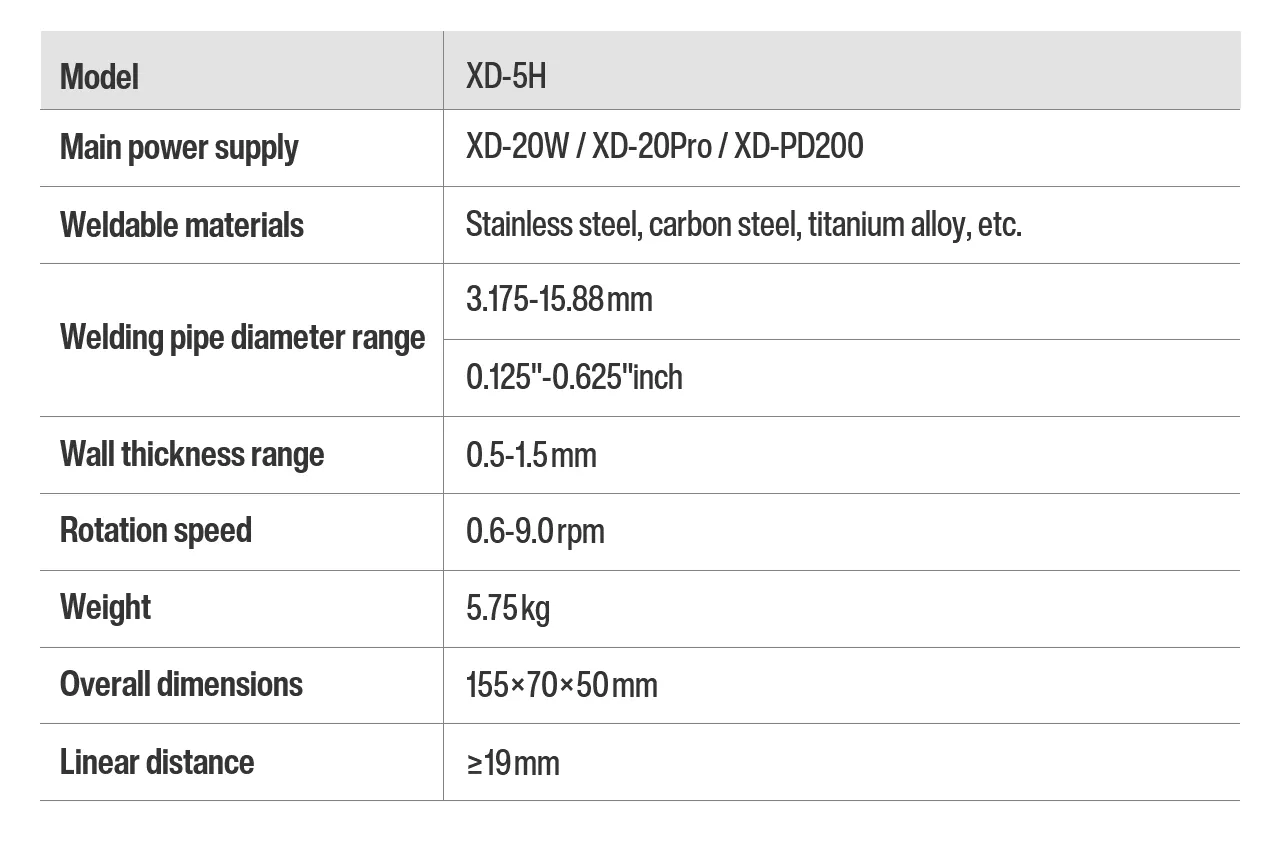

| Model | XD-5H | XD-PX5H | XD-10H | XD-8H | XD-8HPH |
| Main power supply | XD-20Pro/XD-20W/XD-PD200 | ||||
| Weldable materials | Carbon steel / stainless steel / titanium alloy, etc. | ||||
| Welding torch cooling | Water-cooling | Air-cooled cooling | |||
| Welding pipe diameter range (mm) | 3.175-15.88 | 3.175-15.88 | 6.35-25.4 | 6-12.7 | 3.175-12.7 |
| Wall thickness range (mm) | 0.5-1.5 | 0.5-1.5 | 0.5-1.5 | 0.5-1.5 | 0.5-1.5 |
| Rotation speed (rpm) | 0.6-9.0 | 0.6-9.0 | 0.6-9.0 | 0.6-9.0 | 0.6-9.0 |
| Weight [with cable] (kg) | 5.75 | 6 | 6.2 | 4.02 | 11.6 |
| Overall dimensions (mm) | 155*70*50 | 169*74*167 | 170*100*55 | 255*66*29 | 269*157*193 |
| Linear distance (mm) | ≥ 19 | Thick side 6 / Thin side ≥ 19 | ≥ 19 | ≥ 6 | |
KEPUNI XD-PD 200は、薄肉パイプ（3-168 mm）用のデジタル電源です。アップグレード可能なOS、12回の微調整された溶接間隔、正確で信頼性の高い全位置溶接のための包括的な制御/保護機能を備えています。

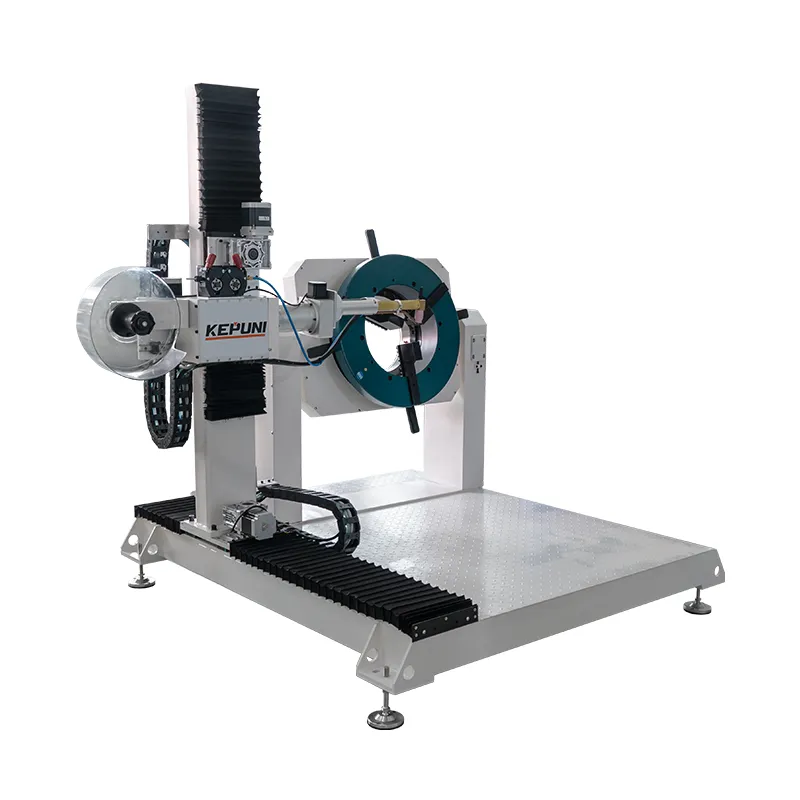

KEPUNI's automatic girth welder performs precision TIG welds on circular joints (φ15-210mm). Ideal for cylinders, tees, el...
