Automatic Girth Welding Machine mainly used for cylinder, tee, elbow, pipe flange and other ring joint welding, and cylinder lap welding,widely used in petrochemical,medical machinery, instrumentation,environmental protection equipment and other industries.It adopts TIG welding process and can be filled with wire or self-melting.
Clamping range:Frontal clamping,φ15-210mm
Unique water 0 cooling design
Fine Dimension Control
Operation button integration
Gas pipeline optimization
USB import and export

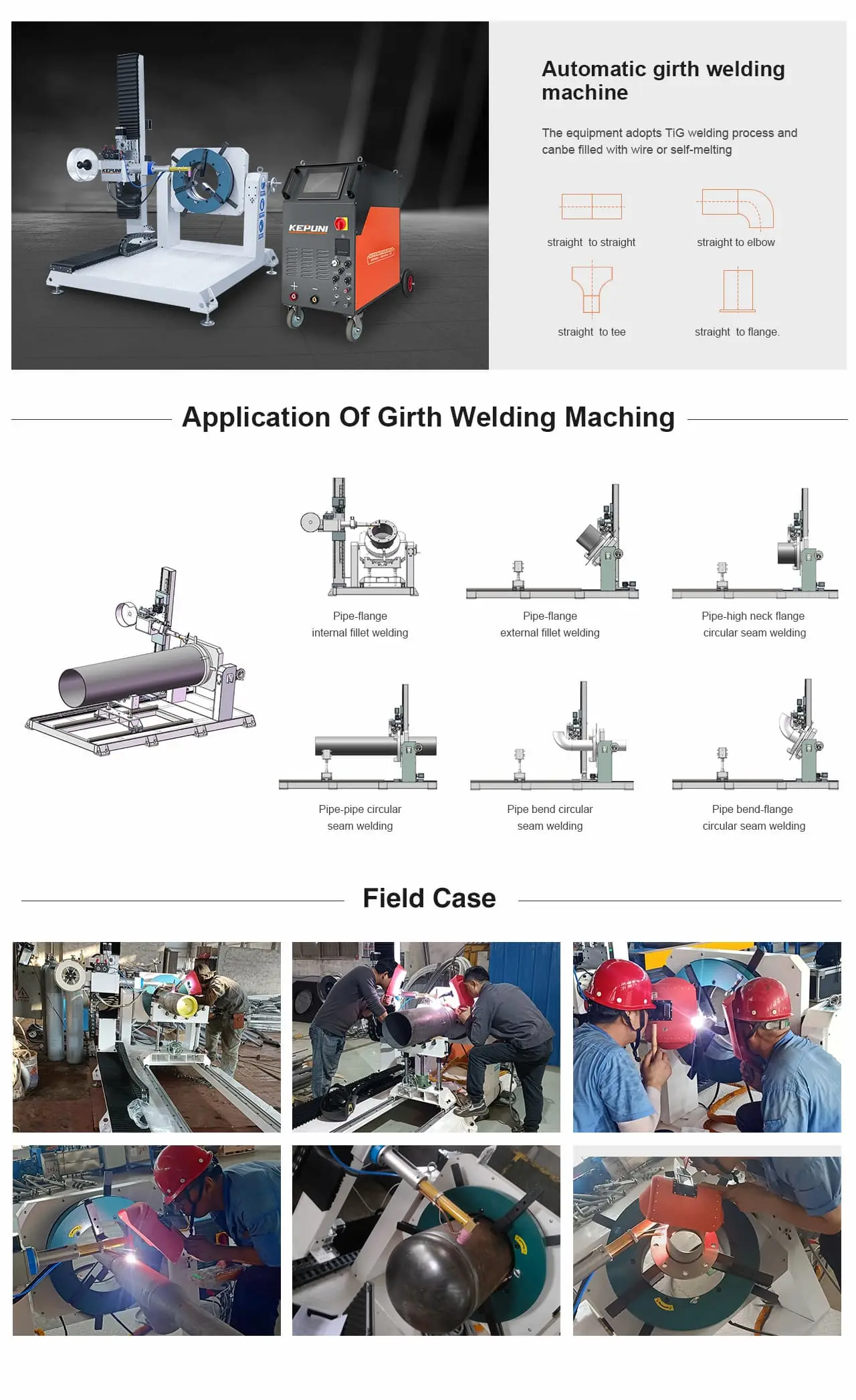

This equipment is suitable for butt joint or fillet weld of pipe fittings. Diameter of circular workpiece: girth weld with customizable size. Example: straight pipe to straight pipe, straight pipe to elbow, straight pipe to tee, straight pipe to flange.
XD-GH400 is a 400A TIG girth welding power source with a built-in pipeline welding database independently developed and manufactured by KEPUNI. It integrates hardware and program control such as welding machine movement, control module, arc voltage tracking, welding gun swing, integrated wire feeding, printer module, Internet of Things module, USB download interface, etc. It can automatically generate all the parameters required for welding according to information such as pipe diameter and wall thickness. It is easy to operate and use.
Key Features:
Welding head design:
The
welding gun adopts the standard TIG 500A water-cooling design, which
can work continuously for a long time. It is equipped with an arc
voltage height adjustment device and a welding gun angle swing device,
which can be adjusted automatically or manually.
Wire feeding structure:
Adopts
V-shaped serrated wire feeding wheel and high-precision motor, which
can feed wire evenly and can feed 0.8mm-1.6mm welding wire without wire
sticking.
Protection function:
Overvoltage,
overload, leakage, arc ignition failure, tungsten needle short circuit
protection，air shortage alarm, defect detection.
Control function:
Current
control,frame 5-axis control,wire feeding control ,rotation angle
movement,arc pressure control, yaw control,printer control and
circulating cooling water control.
User-Friendly Design:
Siemens PLC+DSP digital signal control, more accurate arc output, 400A welder movement and high-frequency ring porcelain arc ignition technology, making it easier to arc.
The
circular automatic welding program with stable output current
automatically controls the current output, wire feeding speed, arc
voltage tracking, welding gun swing, positioner, circulating water and
other parameters.
Embedded pipeline welding V2.0 database, users only need to input pipe diameter, wall thickness or welding wire diameter, and the system can automatically produce welding parameters.
Built-in Internet of Things module can remotely upgrade the control program anytime, anywhere, and realize industrial interconnection with its own USB interface, which can be exported by users.
The
6-axis design allows the welding gun to be adjusted left and right, up
and down, and front and back to meet the welding requirements of various
pipe fittings.
| Welding head code | XD-GH400 |
|---|---|
| Power（KVA） | 18KVA |
| Input voltage （V） | AC380V±10% 50HZ/60HZ |
| Welding current （A） | 5-400A |
| Duty cycle（%） | 310A 100% / 400A 60% |
| No-load voltage（V） | 73V |
| Control mode | Siemens PLC+DSP digital signal |
| Cooling mode | Air cooling+built-in water cooling |
| Parameter storage | 200 |
| Level of protection | H/IP23 |
| Display screen | 10 inch touch screen |
| Arc pressure height range（mm） | 0.1-9.9 |
| WeightAngular swing amplitude of welding gun （mm） | 0.1-5 |
| wire feed rate | 10-6000mm/min |
| Weight （KG） | 81.5[Including cooling water 5L] |
| External dimensions（mm） | 1150×630×940 mm |
