Split type orbital welding guns is suitable for semiconductor industry, clean energy industy, water treatment industry, life science industry, food and beverage industry, it use of split type design, according to the thickness of the welding pipe and different site conditions, there are two different design schemes for you to choose, the delivery time is 10 days after you provide the pipe diameter size.
8H micro welding gun is designed for narrow space welding
Delivery time: 10 days
Weld heads have optical speed control wihthout the need for a tachometer or calibration
Reater flexibility to perform welds farther away from the power supply is provided using available welding heads extension cables
Engineered for industries requiring ultra-precision welding in
sterile or confined environments—including semiconductors, clean energy,
water treatment, life sciences, and food & beverage—the KEPUNI
split-type orbital welding head system combines modular design with
rapid deployment capabilities. Key Specifications: Pipe Diameter Range: 6mm – 12.7mm Modular Design Solutions: 8H Micro-Welding Head Advanced Features: Optical Speed Control: Eliminates the need for tachometers or manual calibration, maintaining consistent welding parameters via real-time feedback. Extended Reach Cables: Enables welding up to 15 meters from the power supply, ideal for large-scale or hazardous environments. Plug-and-Play Adaptability: Two configuration schemes (standard/eccentric) allow seamless integration with pipe thicknesses and site constraints. Applications: Semiconductor: Welds process piping for high-purity gas delivery systems. Pharmaceutical: Joins stainless steel tubing in bioreactors and sterilization units. Food & Beverage: Repairs CIP/SIP-compliant piping in dairy and brewing facilities.
Joint Type: Butt welding
Wall Thickness: 0.5 mm – 1.5 mm
Delivery Time: 10 days (customized to pipe diameter specifications)
Optimized for narrow-space
applications (e.g., microfluidic channels, semiconductor manifolds) with
a compact profile and 360° rotational freedom.

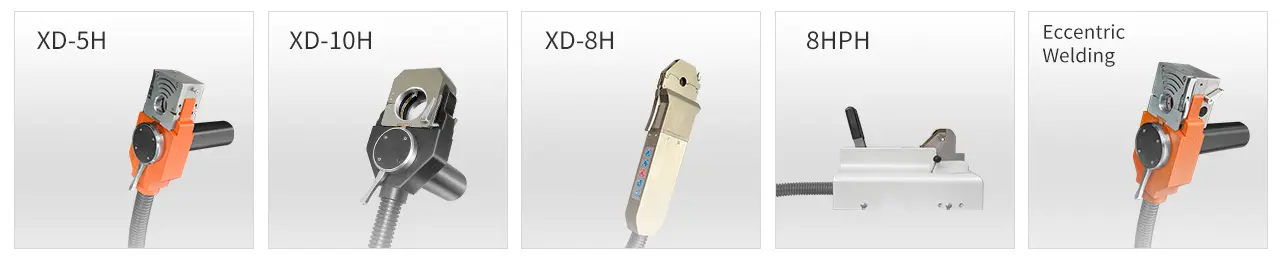

| Model | XD-5H | XD-PX5H | XD-10H | XD-8H | XD-8HPH |
| Main power supply | XD-20Pro/XD-20W/XD-PD200 | ||||
| Weldable materials | Carbon steel / stainless steel / titanium alloy, etc. | ||||
| Welding torch cooling | Water-cooling | Air-cooled cooling | |||
| Welding pipe diameter range (mm) | 3.175-15.88 | 3.175-15.88 | 6.35-25.4 | 6-12.7 | 3.175-12.7 |
| Wall thickness range (mm) | 0.5-1.5 | 0.5-1.5 | 0.5-1.5 | 0.5-1.5 | 0.5-1.5 |
| Rotation speed (rpm) | 0.6-9.0 | 0.6-9.0 | 0.6-9.0 | 0.6-9.0 | 0.6-9.0 |
| Weight [with cable] (kg) | 5.75 | 6 | 6.2 | 4.02 | 11.6 |
| Overall dimensions (mm) | 155*70*50 | 169*74*167 | 170*100*55 | 255*66*29 | 269*157*193 |
| Linear distance (mm) | ≥ 19 | Thick side 6 / Thin side ≥ 19 | ≥ 19 | ≥ 6 | ≥ 6 |
